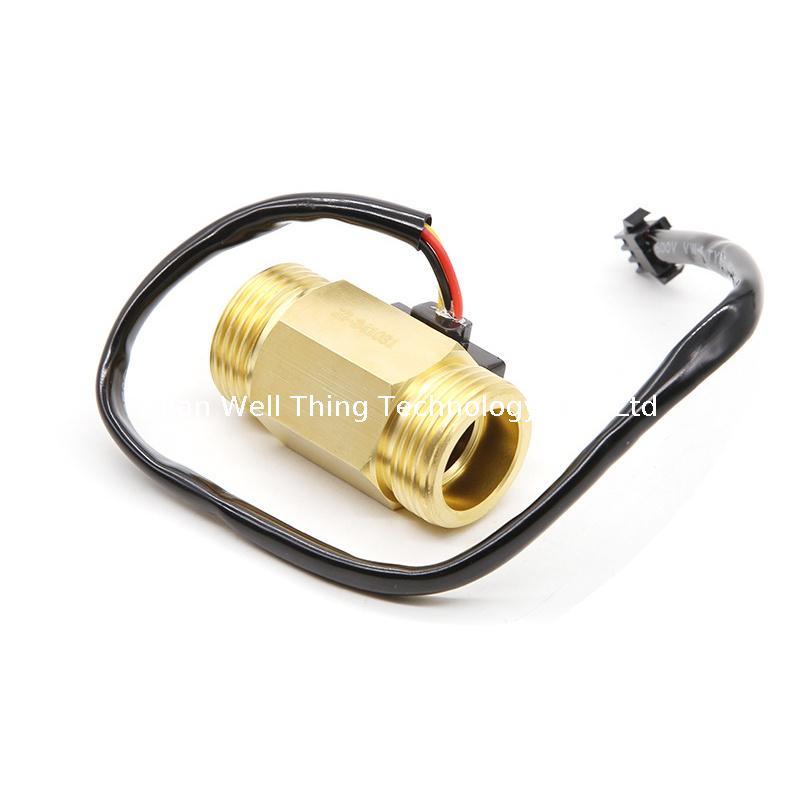

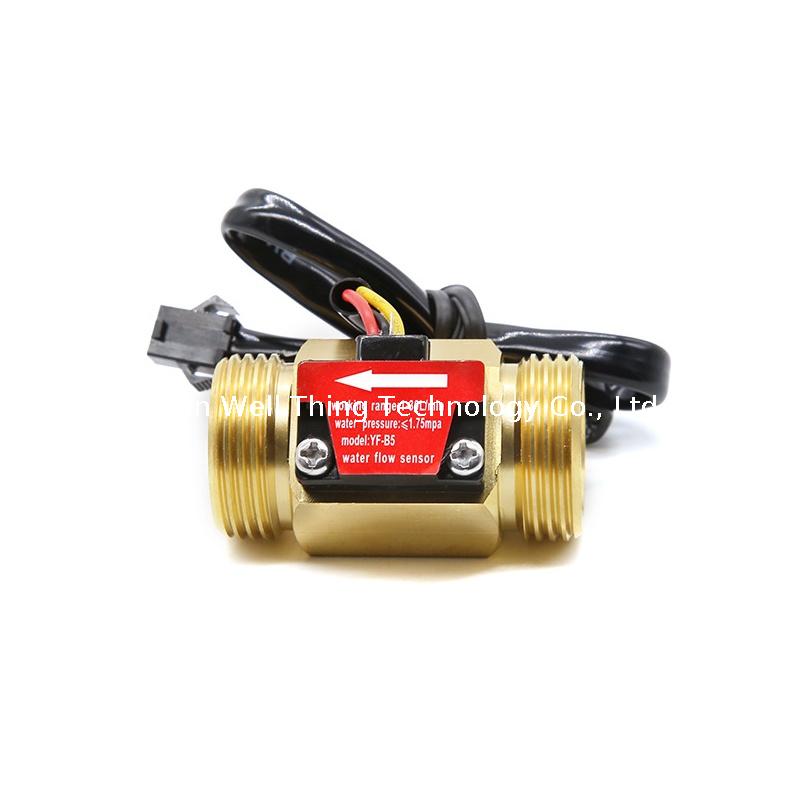

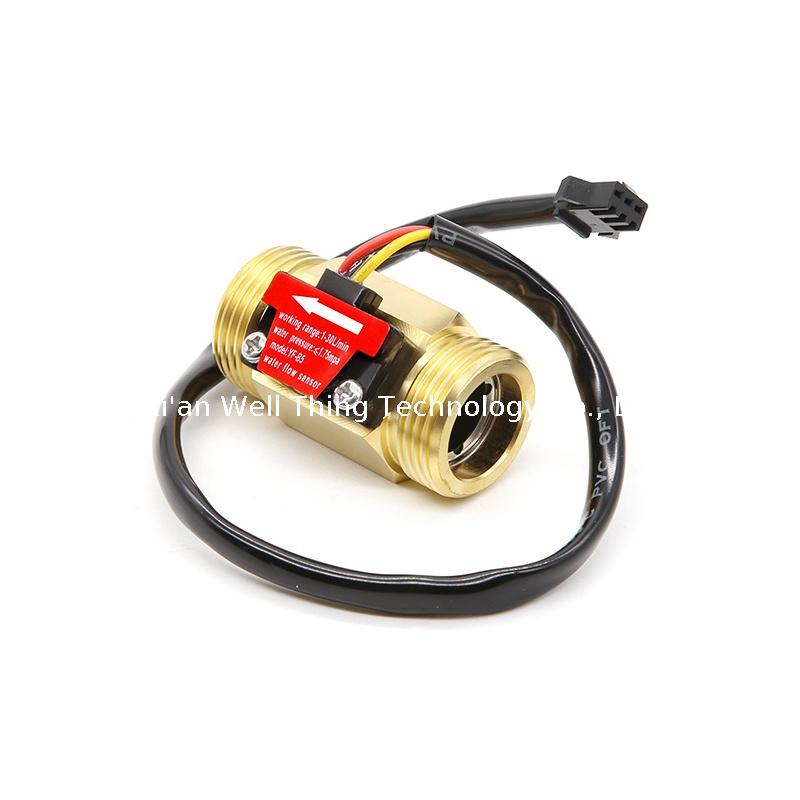

YF-B5 Brass Water Flow Sensor Hall Water Flow Sensor Water Heater Farm Irrigation Hall Water Flow Meter
Model No.: YF-B5
Interface Size: G3/4 inches
Voltage Range: 3.5-24VDC
Water Pressure: ≤1.75Mpa
Inner Diameter: 18mm
Outer Diameter: 26mm
Euonymus Length:11mm
Suitable Medium: Water (no impurities)
Valve Material: Copper Medium
Temperature: -20~100°C
Insulation Resistance: >100MO
Flow Rate Range: 1-30L/min
Pulse Range: F =(6.6*Q) Error ≤3%, i.e. 396 pulses per liter of water
Output Pulse High Level: >DC4.7V (Input Voltage DC5V)
Output Pulse Low Level:<DC0.5V (Input Voltage DC5V)
Kindly note our showing price is for sample order only, if bulk quantity we can offer lower price :)
