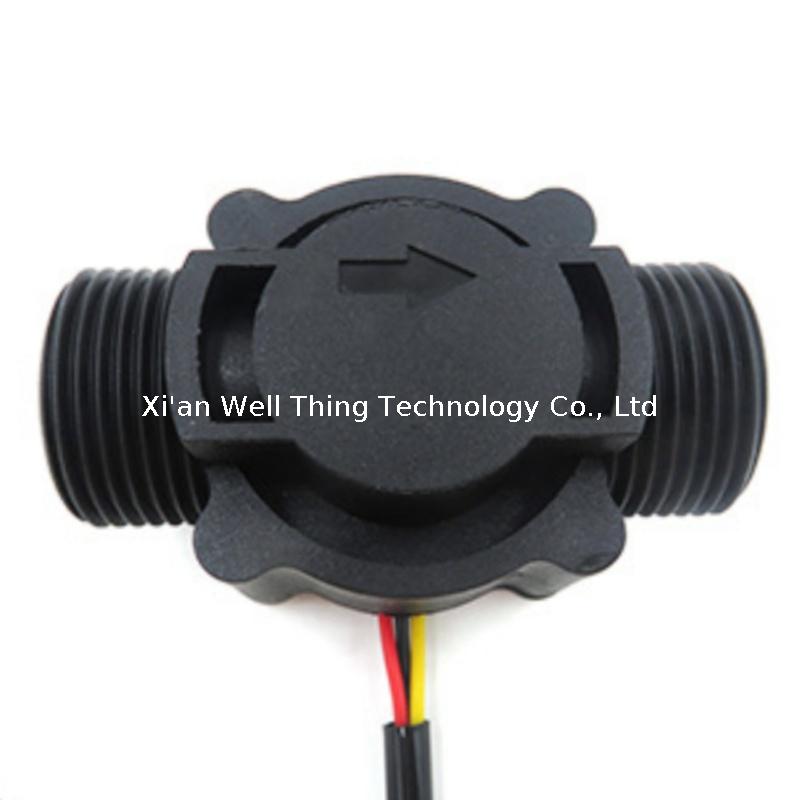

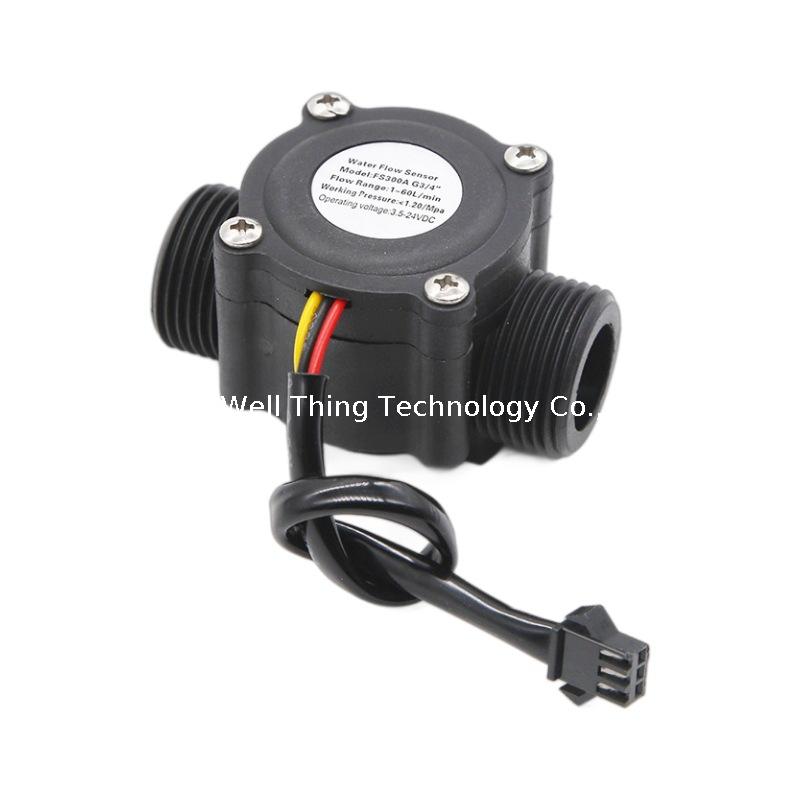

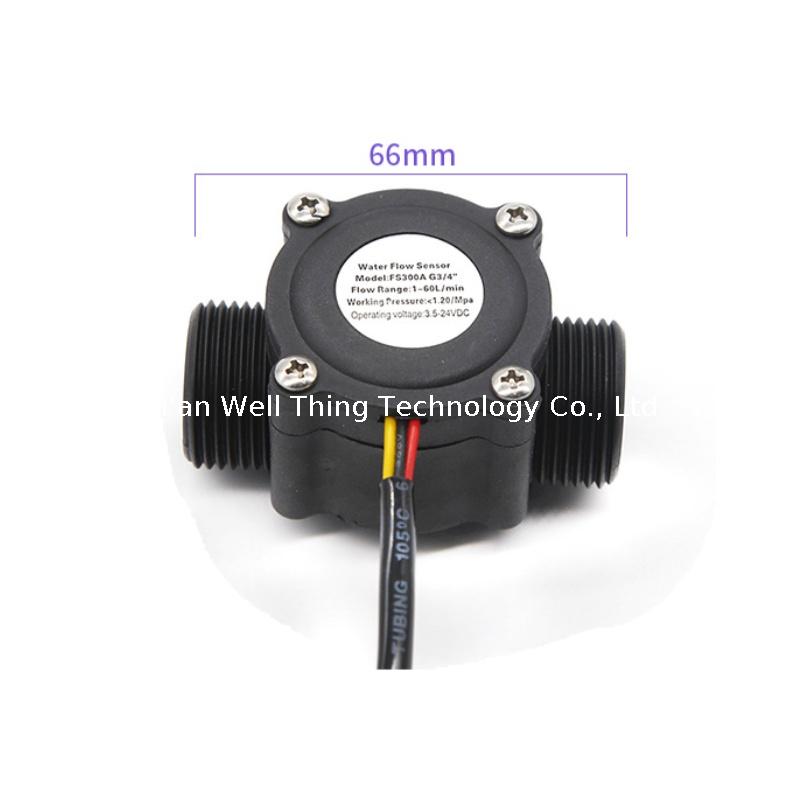

FS300A Water Flow Sensor Flow Meter G3/4'' 1-60L/Min
Model No.: FS300A
Interface Size: G3/4
Voltage Range: 3.5-24VDC
Water Pressure Resistance: <1.75Mpa
Inside Diameter: 16mm
Outside Diameter: 26mm
Screw Thread Length: 17mm
Suitable Medium: Pure Water
Valve Body Material: Nylon Medium
Temperature: -20~100°C
Insulation Resistance: >100MM
Flow Rate: 2-60L/min
Pulse Range: F=(6.5*Q) Error ≤3%, i.e. 390 pulses per liter of water
Output pulse high level: >DC4.7V (input voltage DC5V)
Output pulse low level: <DC0.5V (input voltage Dc5V)
Kindly note our showing price is for sample order only, if bulk quantity we can offer lower price :)
