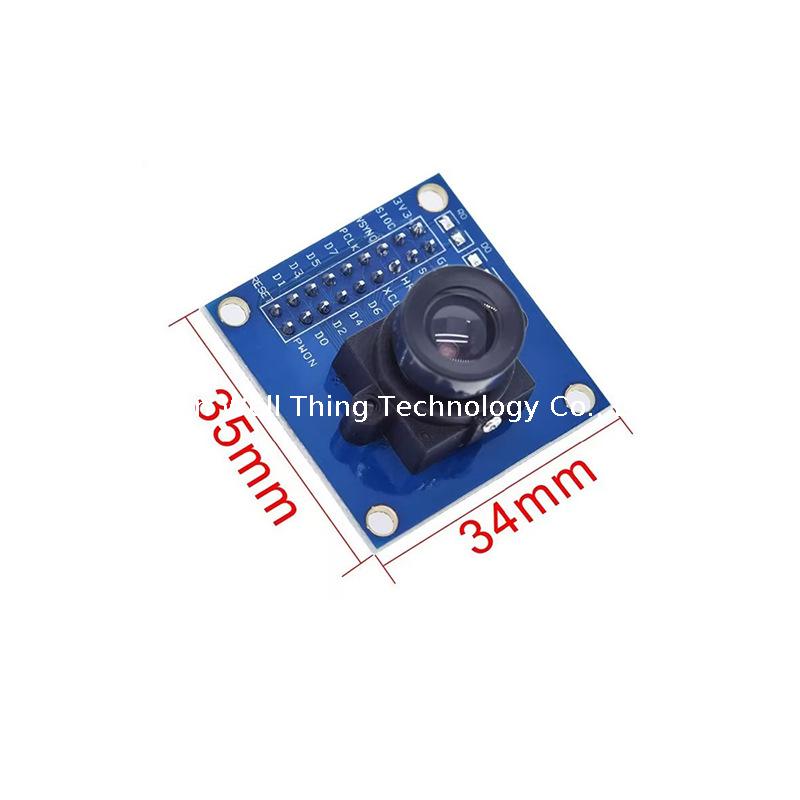

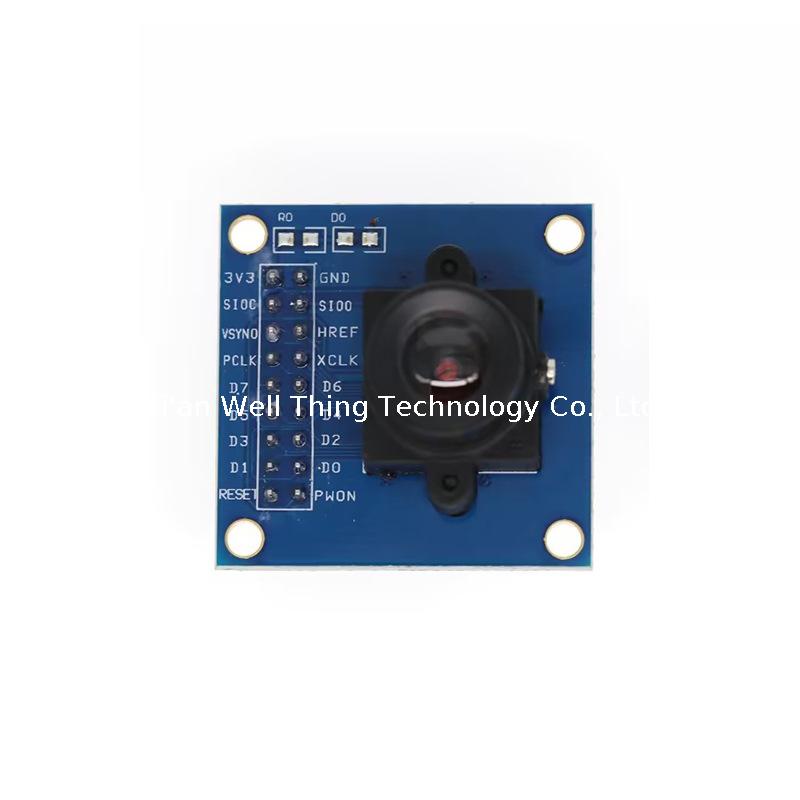

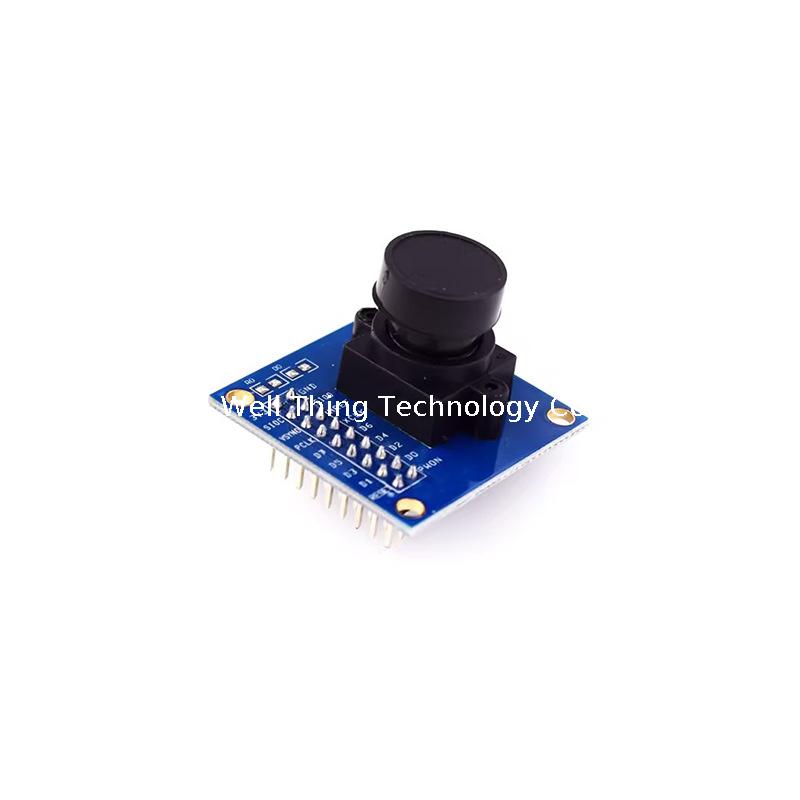

OV7670 Digital Camera Module Image Sensor Module
Parameters
Sensor array: 640*480
Power core voltage: 1.8VDV±10%
Analog voltage: 2.5-3.0V
IO voltage: 1.7-3.0V
Power consumption: 60mW/15fpsVGAYUV when working; less than 20uA when hibernating
Operating temperature: -30℃-70℃
Stabilized operating temperature: 0℃-50℃
Output format: YUV/YCbCr4. 2:2, RGB565/555/444, GRB4:2:2, Raw RGB Data
Optical size: 1/6"
Field of view: 25°
Maximum frame rate: 30fps
Signal-to-noise ratio: 46dB
Dynamic range: 52dB
Viewing mode: line-by-line
Features
1. high sensitivity for low-light applications
2. low voltage for embedded applications
3. standard SCCB interface, compatible with the IIC interface
4. support for VGA, CIF, and a variety of sizes from CIF to 40 * 30
5. VarioPixel sub-sampling method
6. automatic impact control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light Streak, automatic black level calibration. Image quality control including color saturation, hue, gamma, sharpness and ANTI_BLOOM
7. ISP with noise elimination and bad point compensation
8. support for flash, LED lights and xenon lamps
Kindly note our showing price is for sample order only, if bulk quantity we can offer lower price :)
